Equipment & Capabilities

Download our Equipment & Capabilities Quick Reference

Fab Ilustration-1

Sheet Metal Fabrication

Robust capabilities and highly-trained fabrication technicians ready to produce high-quality fabricated products for our customers.

Critical Tolerances:

  • Single Flange Dimensions +/- .010
  • Overall Formed/Welded Dimensions +/-.030
  • Hole Diameters +/- .003
  • Hole-to-Hole Centers +/- .005
  • Weld Assemblies +/- .045

Scroll below to see specific metal cutting, bending and forming, and welding capabilities.

Cutting

Explore our sheet metal cutting capabilities and equipment below.
Click on the icon next to the item you would like to learn more about.

MILD STEEL    24 gauge to .5" plate
STAINLESS STEEL    24 gauge to .25"
GALVANIZED STEEL    24 gauge to .138"
ALUMINUM    24 gauge to .25"

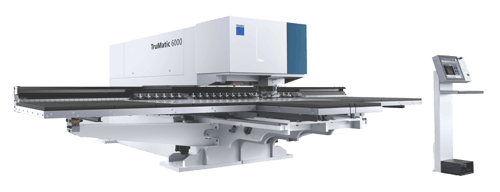

Trumpf TruMatic 6000

Highly efficient automated machine with robust laser and punching technology.

60" x 120" Max Sheet Size  20 Ton Punching Force 3kW Fiber Laser
TruMaticCropped80-1



Carbon Steel    6mm|.250" Stainless Steel    6mm |.250" Aluminum    5mm|.196"
MAZAK Super Turbo
2.5 kW X-48 Laser Cutting System (2)
MAZAK NTX48
1.5 kW Laser Cutting System
Strippit
Turret Punch/Laser Combo




Bending

Explore our sheet metal forming and bending capabilities and equipment below.
Click on the icon next to the item you would like to learn more about.

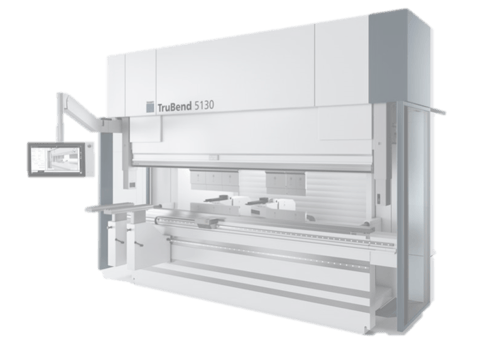

4 Trumpf TruBend 5130 Press Brakes:

  • Max Bend Length 120"
  • Press Force 150 Tons
  • 6 Axis Backgauge





Amada HD 1303 NT

Press Force: 130 tons
120” Bend Length

10’ LVD PPEB

Press Force: 150 tons
20” Bend Length

Amada HFB 22040 (2)

Press Force: 200 tons
168” Bend Length

Amada HFB 1003

Press Force: 110 ton
120” Bend Length

Amada HFB 8025 (2)

Press Force: 88 tons
96” Bend Length

Amada FBD 8020

Press Force: 88 tons
72” Bend Length

Welding

12 weld stations manned by skilled and experienced welders. Carbon steel, stainless, and aluminum.
Explore our MIG, TIG, spot, and stud welding capabilities and equipment below.
Click on the icon next to the item you would like to learn more about.

Miller Invision™ 456P (2)
Miller Maxtron™ 450 (3)
Miller Phoenix™ 456 (3)
Millermatic™ 135
Millermatic™ 211
Millermatic™ 252 (3)
Millermatic™ 350p (3)

Lincoln Square Wave®
Miller Dynasty™ 210
Miller Syncrowave™ 350 LX
Miller Syncrowave™ 351 (2)
Miller XMT 304™ cc/cv

ACME® 50 KVA
Banner® 130 KVA
Banner® 75 KVA
Banner® 75 KVA

ARC-900
ARC-700
Pro-Weld CD-512
Tru-Weld 375

Paint Illustration

Powder-Coating & Finishing

In-house powder coating line with environmentally-controlled clean room. Skilled powder coating technicians with dedicated quality system to achieve spectrophotometer-verified color matching and coverage.

Nordson Spectrum® Powder Feed System
Nordson Horizon® Powder-Coating Rooms (2)

6 STAGE

Pre-Treatment Washer
Computer-Controlled DI

24”x48”x96

Max Unit Size

1,160 ft

Conveyor System



ISO-Together

Quality & Engineering

  • Robust total quality management system committed to ISO standards.
  • Team of full-time engineers dedicated to providing quality support and cost-savings through design for manufacturability and assembly.

InspectVision Vision-Based Planar 2D Inspection Machine
Fastest flat-sheet metal part inspection in the world with full CAD report capabilities.

  • 40 Million Measurements in 0.1 seconds
  • Guaranteed ISO:10360 Accuracy
Edge FaroArm 6ft Portable CMM
3D CMM (Coordinate Measuring Machine) compatible with PolyWorks & Smart Profile. Provides accuracy to .0013”

Team of full-time engineers specializing in design for manufacturing & assembly, DFMEA, PFMEA, prototyping, and revision.

CAD Software:

SolidWorks® SolidWorks® Composer Creo



Offline Programming:

TruTops Boost Planar Cadman  LVD NCell

Let's Talk!

If you have questions about our capabilities or have a project that you think HUI can help with, drop us a line!
